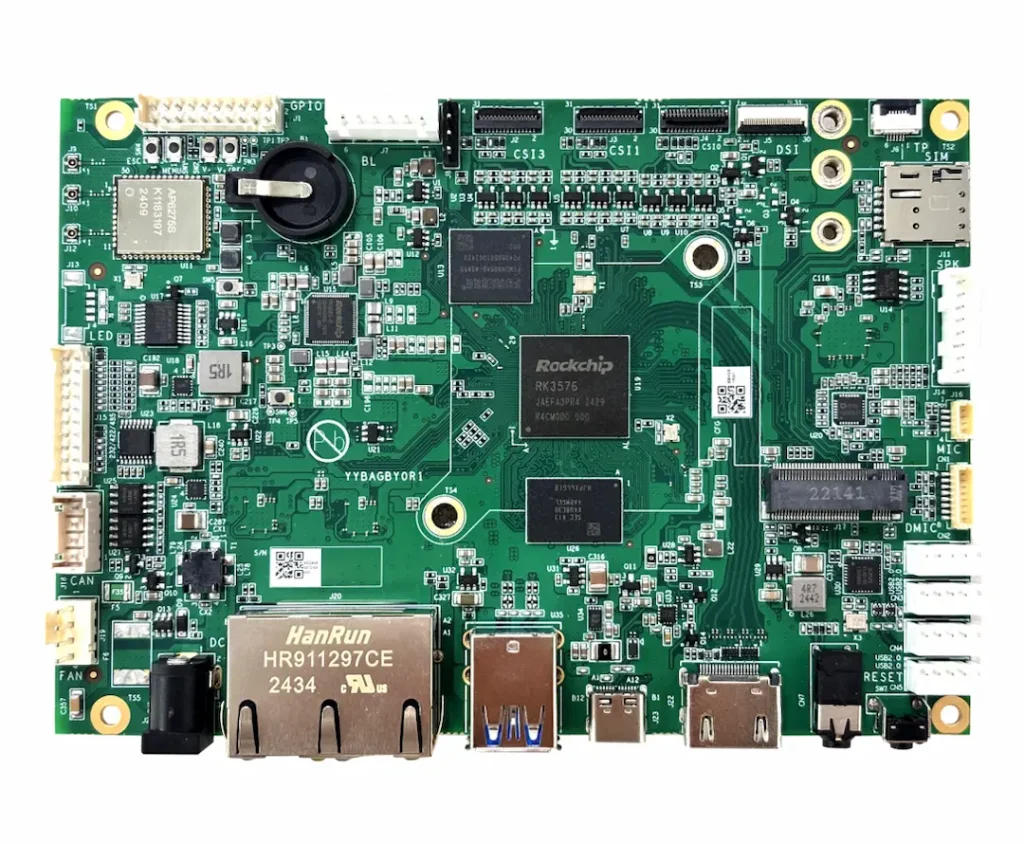

| Product Name | RK3576 ARM architecture embedded single board computer |
| CPU | Rockchip RK3576, Four core ARM Cortex-A72+Four core ARM Cortex-A53 processor, 2.2 GHz (maximum) |
| GPU | ARM Mali G52 MC3 GPU， Supports OpenGL ES1.1/2.0/3.2, OpenCL 2.1, Vulkan 1.2 |
| NPU | 6 TOPS |
| Memory | 4GB 32-bit LPDDR4x |
| Storage | 128GB UFS 2.1 (UFS startup); 64GB eMMC 5.1； Optional: SATA SSD Expansion (M.2 B-Key), up to 1TB |
| Ethernet | 2 x RJ45, 10/100/1000Mbps |
| Wi-Fi & Bluetooth | Wi Fi 5: IEEE 802.11 a/b/g/n/ac+Bluetooth 5.0 |
| Cellular network | Optional: 4G/5G (M.2 B-Key) |
| Display (multi screen abnormal display) | 1 x MIPI DSI, Up to 2560 x 1600 @ 60Hz; 1 x HDMI 2.1, Up to 4K @ 120Hz; 1 x DisplayPort over USB-C, Up to 4K @ 120Hz |
| Backlight | 1 x Backlight connector (providing backlight for MIPI DSI to LVDS interface) |
| Video Encoding and Decoding | 8K30 or 4K120 H.264/H.265/VP9/AV2/AVS2 decoder, 4K60 H.264/H.265 encoder |
| Audio | 4 x D-Mic， Including 2 PDM interfaces; 1 x A-Mic； 1 x 3.5mm 2-in-1 audio interface (CTIA standard); 1 x power amplifier connector |
| Camera | 3 x MIPI CSI-2, ISP: 16MP, High Dynamic Range (HDR) |
| Touch Control | 1 x I2C touch screen connector |
| Serial port | 2 x RS232； 2 x RS232/485/422 |
| USB | 2 x USB 3.0 Type-A； 4 x USB 2.0 connectors; 1 x USB 3.0 Type-C (OTG, DP 1.4) |
| CAN | 2 x CAN |
| GPIO | 1 x GPIO socket, including 1 x SPI, 1 x UART, 1 x I2C, 2 x GPIO |
| Fan | 1 x PWM fan connector (12V) |
| UART | 1 x Debugging UART (3.3V) |
| SIM | 1 x Nano SIM card slot |
| Antenna | 2 x Wi Fi antenna connectors (IPEX-4); 1 x Bluetooth antenna connector (IPEX-4) |
| Real time clock | Support |
| Watchdog timer | Support |
| M. 2 slots | 1 x M.2 B-Key (2260, SATA/PCIe 2.1 extended SSD/3042, USB 3.0 extended 4G/3052, USB 3.0/PCIe 2.1 extended 5G) |
| Button | 1 x reset button, 1 x MaskROM button, 1 x power button, 4 x buttons (volume+/-, ESC, menu) |
| LED indicator light | 2 x LED indicator lights (red: powered on, green: normal operation; customizable by the user) |
| Input | 12V DC； 1 x power interface |
| Power consumption | Typical value: 2.4W; maximum value: 6W |
| Operating System | Android 14, Debian 11, Ubuntu 22.04 |
| Size | 146mm x 102mm； Heat dissipation: heat sink |
| Temperature | Working temperature: 0 ℃~+60 ℃ (optional: -40 ℃~+85 ℃); Storage temperature: -30 ℃~+80 ℃ (optional: -55 ℃~+85 ℃) |
| Humidity | 20% -80% RH (no condensation) |
